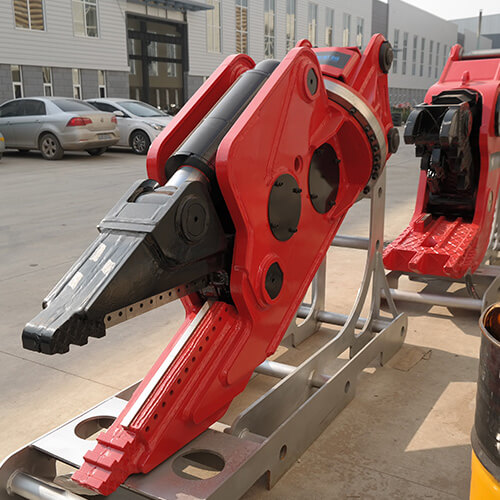

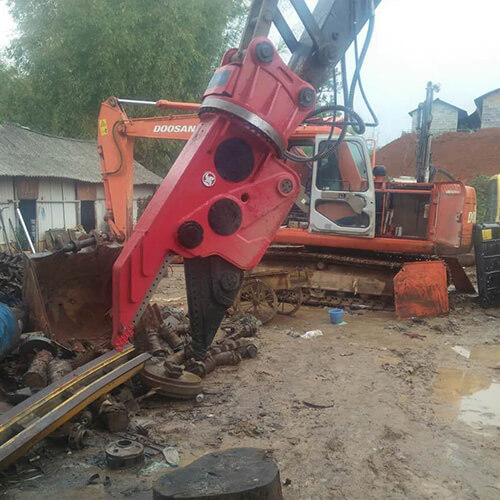

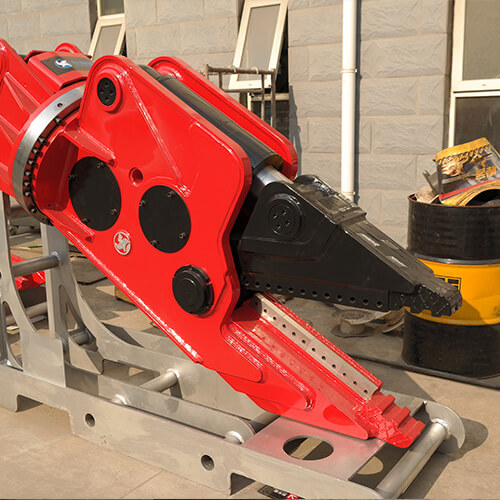

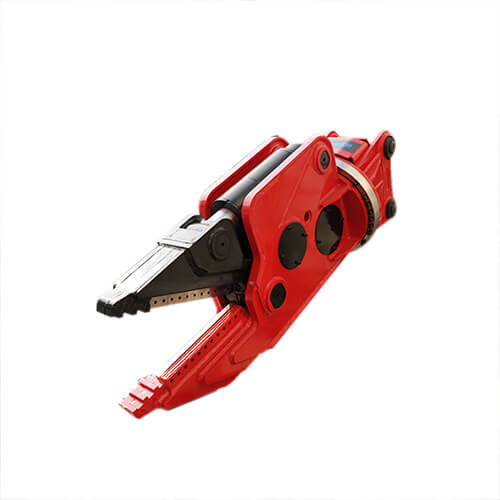

Vehicle Scrapping Shear

Product Features:

1. Adopting the special slewing support, easy operation, stable performance and large torque.

2. The shear uses imported HARDOX400 sheet material, with high strength and large shear force.

3. The blade uses the imported material and has long service life.

4. The clamping arms fixed the dismantled vehicle in three directions to facilitate the dismantling of the shear.

5. The shear with clamping arm can quickly disassemble all kinds of scrapped vehicles.

For more information, please e-mail or call us.

Model Unit JX-C08
Dead-weight kg 1900
Max Opening mm 630
Length mm 2475
Width mm 760
Rotation Mode 360°Hydraulic
Pressure Bar 320
Root Shear Force ton 150
Middle Shear Force ton 106
Fore-end Clamping Force ton 56
Suitable Excavator ton 18-26
