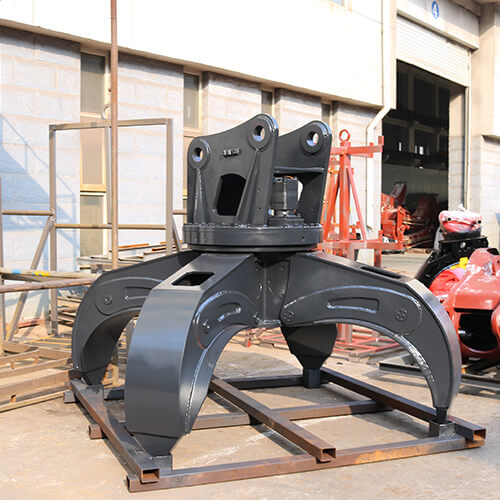

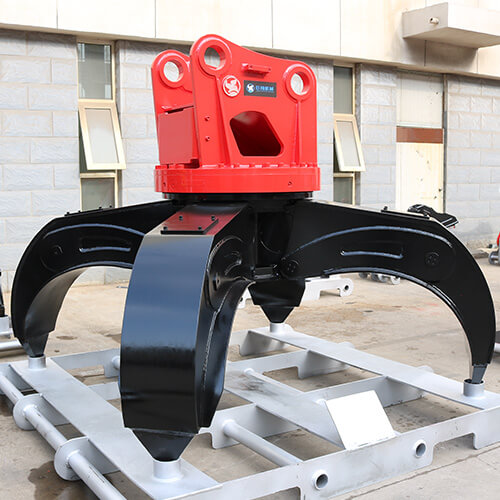

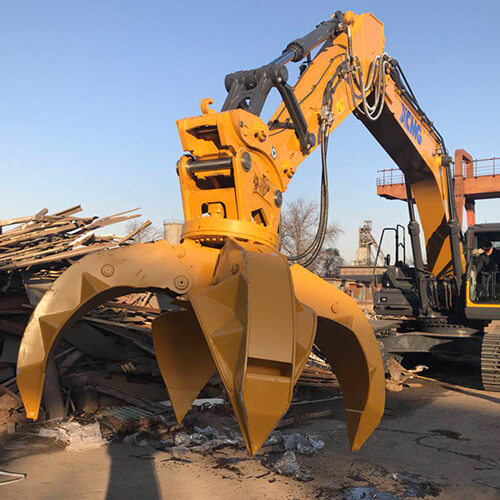

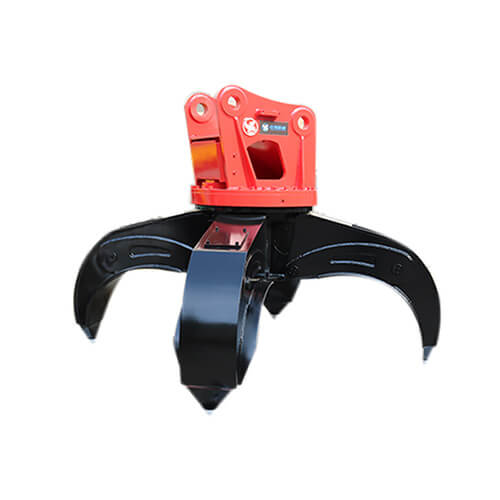

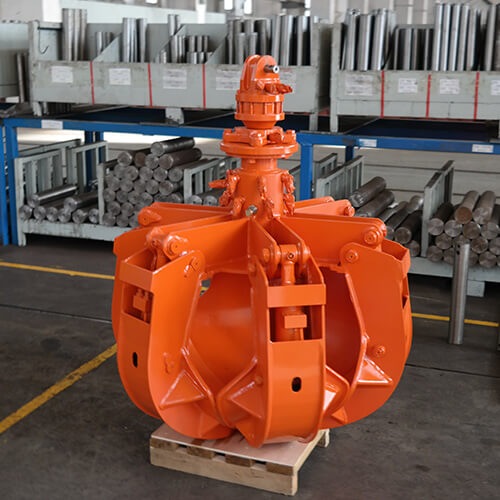

Hydraulic Orange Peel Grapple

Product Features:

1. It adopts imported HARDOX400 sheet material, and is light in weight and excellent in wear resistance.

2. Among the same products, it has the largest grabbing force and widest grabbing distance.

3. It has built-in cylinder and high-pressure hose, and the oil circuit is completely closed, protecting the hose and prolonging the service life.

4. The cylinder is equipped with an anti-fouling ring, which can effectively prevent the tiny impurity in the hydraulic oil from damaging the seals.

For more information, please e-mail or call us.

Online message
Warning: Invalid argument supplied for foreach() in /www/wwwroot/www.juxiangmachinery.com/wp-content/themes/juxiang/single-product.php on line 268
Message Board
Model Unit JX-LZ04 JX-LZ06 JX-LZ08 JX-LZ10 JX-LZ14
Dead Weight kg 550 1050 1750 2150 2500
Max Opening mm 1575 1866 2178 2538 2572
Open Height mm 900 1438 1496 1650 1940
Closed Diameter mm 600 756 835 970 1060
Closed Height mm 1150 1660 1892 2085 2350
Bucket Capacity 0.3 0.6 0.8 1.0  1.3
Max Load kg 800 1600 2000 2600 3200
Flow Demand L/min 50 90 180 220 280
Opening Times L/min 15 16 15 16 18
Suitable Excavator ton 8-11 12-17 18-25 26-35 36-50
