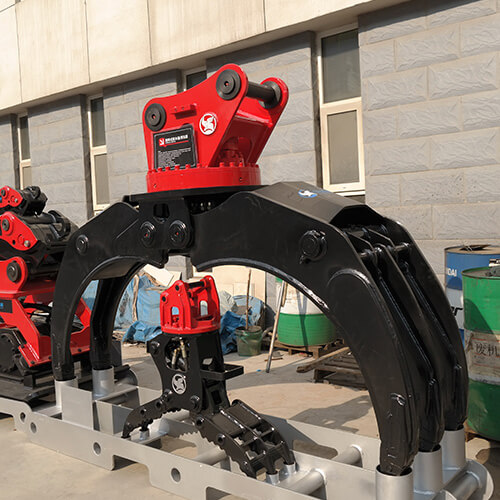

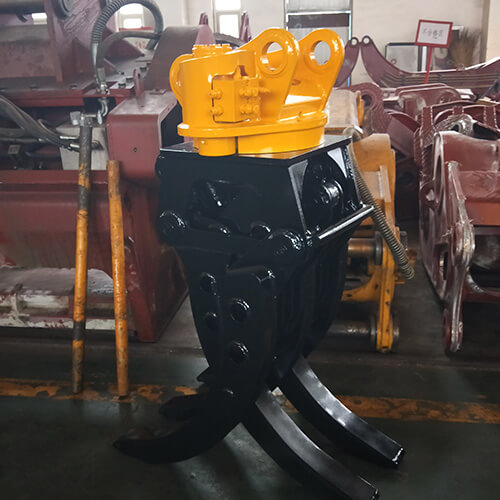

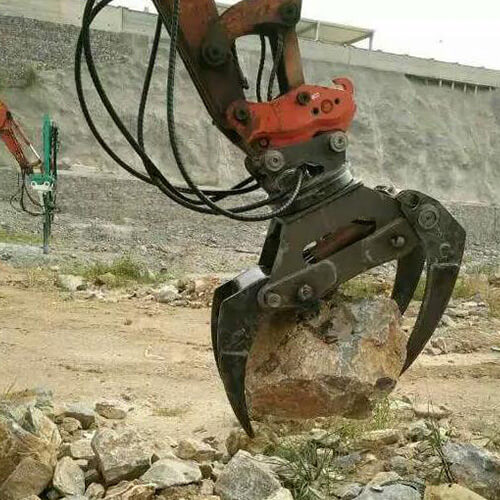

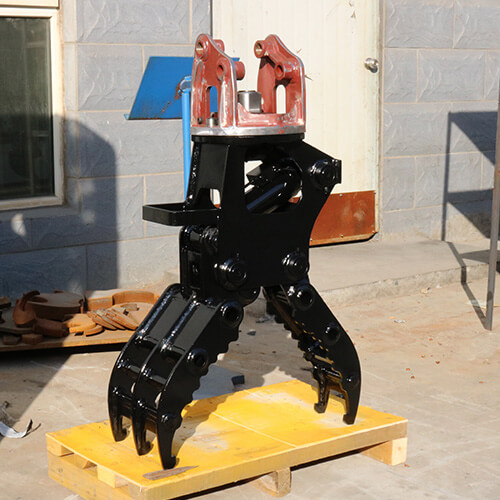

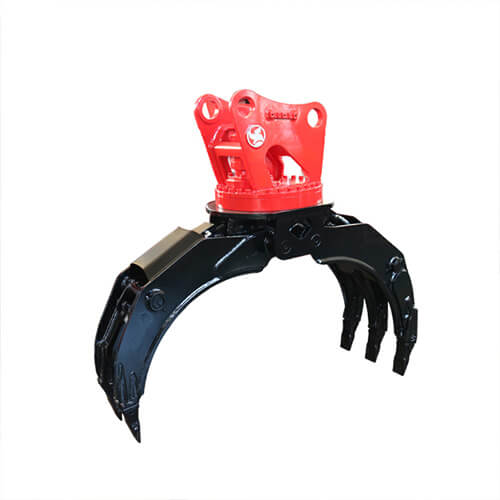

Log Grapple

Product features

1. 360 degree hydraulic rotation makes it more flexible grabbing effect.

2. The built-in balancing valve of the oil cylinder makes the operation smooth and maintains clamping force, thus providing higher safety.

3. The two-way overflow valve and the two-way balance valve of the motor can protect it from the impact of hydraulic pressure.

For more information, please e-mail or call us.

Online message
Warning: Invalid argument supplied for foreach() in /www/wwwroot/www.juxiangmachinery.com/wp-content/themes/juxiang/single-product.php on line 268
Message Board
  Double Cylinder Log Grapple Single Cylinder Log Grapple Mechanical Log Grapple Holding Log Grapple
Model Unit JXZM04 JXZM06 JXZM08 JXZM10 Z04D Z06D Z02J Z04H
Weight kg 390 740 1380 1700 342 829 135 368
Opening Size M/m 1400 1800 2300 2500 1362 1850 880 1502
Working Pressure kg/cm² 120-160 150-170 160-180 160-180 110-140 150-170 100-110 110-140
Setting Pressure kg/cm² 180 190 200 210 170 190 130 170
Working Flow LPM 50-100 90-110 100-140 130-170 30-55 90-110 20-40 30-55
Oil Cylinder Capacity ton 4.5×2 8.0×2 9.7×2 12×2 7.9*1 9.7*1 4.5*1 4.0*1
Suitable Excavator ton 7-11 12-16 17-23 24-30 7-11 12-16 1.7-3.0 7-11
