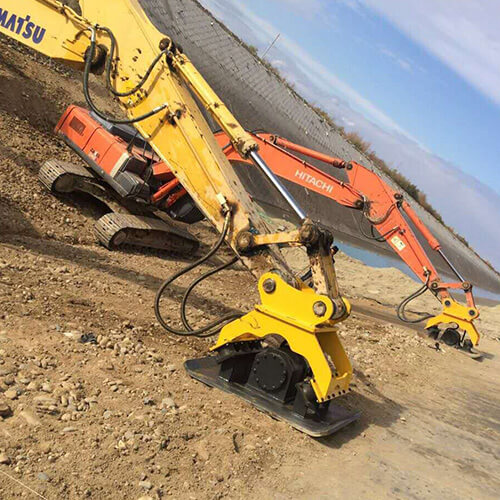

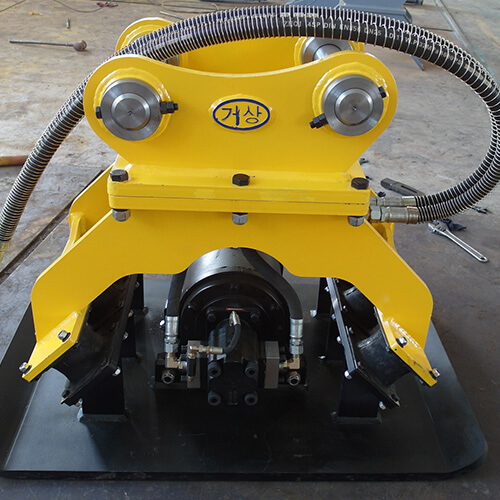

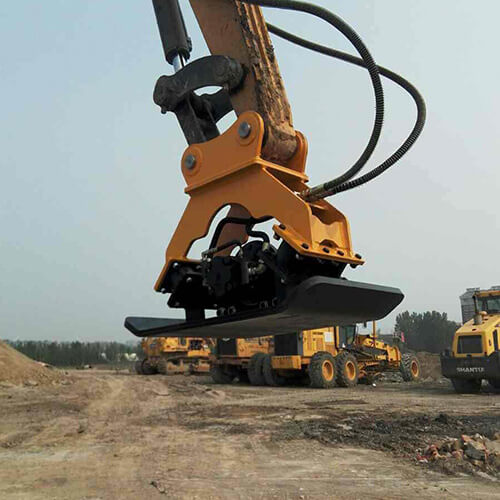

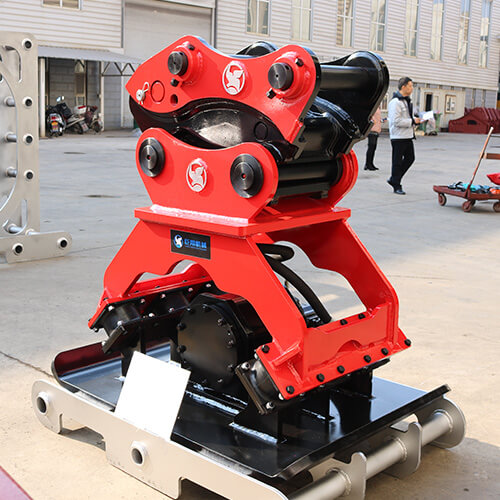

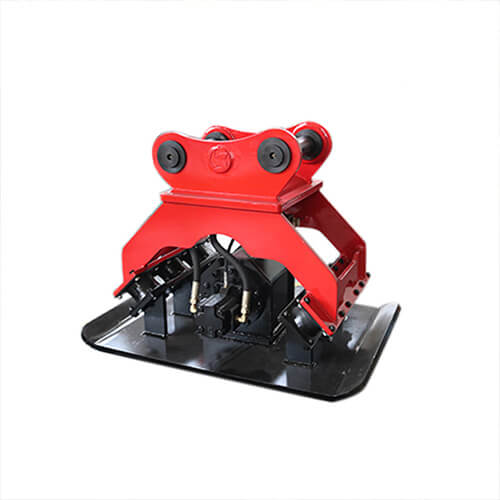

Hydraulic Plate Compactor

Product Features:

1. Simple structure, easy operation and convenient in use and maintenance.

2. It can complete plane, bevel, step, ditches and pits compaction and tamping of other complex foundations.

For more information, please e-mail or call us.

Online message
Warning: Invalid argument supplied for foreach() in /www/wwwroot/www.juxiangmachinery.com/wp-content/themes/juxiang/single-product.php on line 268
Message Board
Model Unit JXZ 300 JXZ 600 JXZ 800 JXZ 1000
Impulse Force Ton 4 6.5 15 15
Vibration Frequency Rpm 2000 2000 2000 2000
Oil Flow L/min 45~75 85~105 120~170 120~170
Operating Pressure kg/cm² 100~130 100~130 150~200 150~200
Weight kg 400 750 1000 1100
Bottom Measurement (LxWxT)mm 900x550x25 1160x700x28 1350x900x30 1350x900x30
Height mm 760 920 1060 1100
Width mm 550 700 900 900
Suitable Excavator ton 4-9 11~16 17~23 23~30
