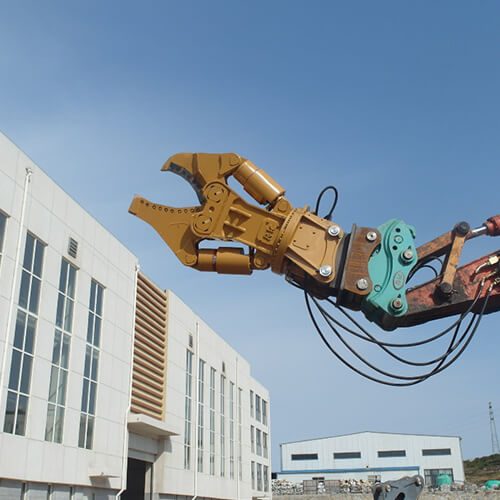

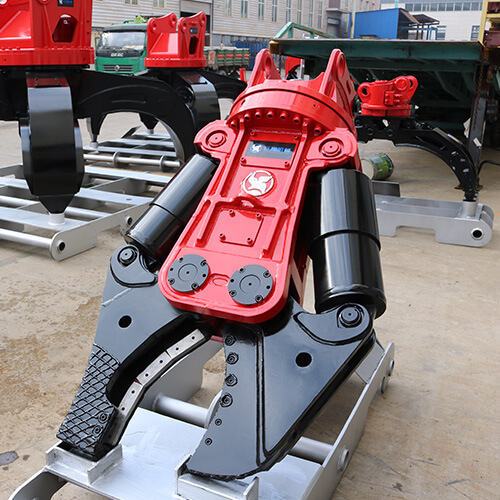

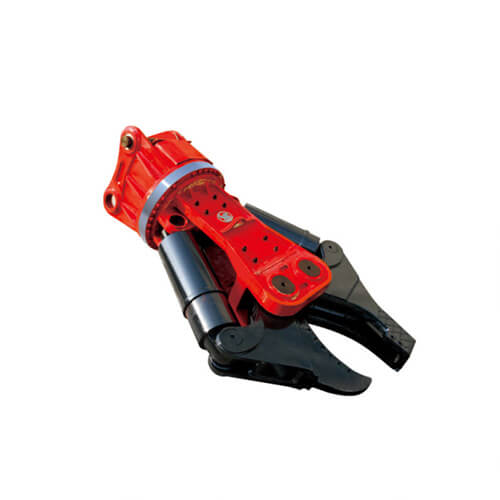

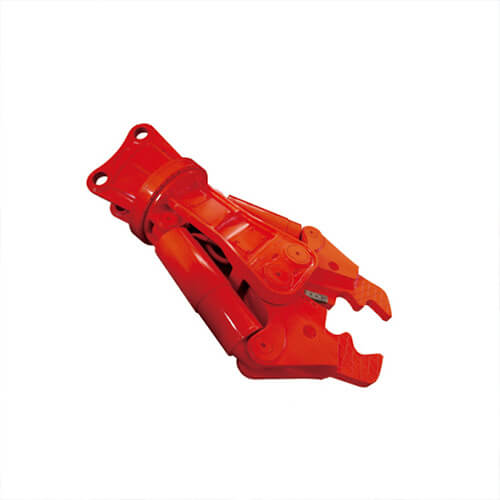

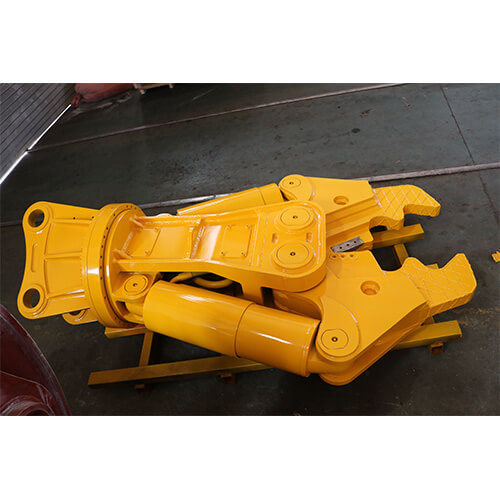

Double cylinder Slewing hydraulic shear

Product Features:

1. The adoption of special slewing support provides stable performance.

2. The shear uses imported HARDOX400 steel material, with double-layer wear-resisting protection, high strength and long service life.

3. The structure is optimized by design and has large shear.

For more information, please e-mail or call us.

Online message
Warning: Invalid argument supplied for foreach() in /www/wwwroot/www.juxiangmachinery.com/wp-content/themes/juxiang/single-product.php on line 268
Message Board
  Scrap Steel Concrete
Model Unit JX-J04G JX-J06G JX-J08G JX-J10G JX-J14G JX-J04H JX-J06H JX-J08H JX-J10H JX-J14H
Dead-weight kg 620 1413 2200 2977 4052 620 1345 2164 3060 4052
Max Opening mm 333.5 540 500 660 801 540 650 950 1100 1200
Height mm 1521 2050 2380 2600 2700 1419 1888 2374 2480 2700
Width mm 864 1175 1370 1600 1700 884 1175 1360 1540 1700
The Active Length of Blade mm 286 348 486 578 736
Rotation Mode   360°Ball Colliding Rotation   360°Hydraulic     360°Ball Colliding Rotation   360°Hydraulic
Pressure bar 235 300 320 320 320 235 300 320 320 320
Root Crushing Force ton 81*2 138*2 171*2 330*2 387*2 81*2 120*2 168*2 288*2 375*2
Middle Crushing Force ton 50*2 80*2 102*2 189*2 218*2 44.5*2 66*2 78*2 125*2 174*2
Fore-end Crushing Force ton 32*2 53*2 75*2 127*2 147*2 25*2 40*2 56*2 90*2 118*2
Suitable Excavator ton 5~8 15~18 20~25 28-35 38-50 5~8 15-18 20-25 28-35 38-50
